Gas Flow Control Technology Based on Digital Mass Flow Controllers
In cutting-edge fields such as semiconductors, biopharmaceuticals, and materials science, the precision of gas flow control directly determines the final quality of the product. Traditional analog mass flow controllers rely on analog voltage or current signals for transmission, making them susceptible to temperature drift and electromagnetic interference. They suffer from inherent drawbacks—including zero-point drift, low setpoint accuracy, and signal‑transmission errors—thus failing to meet the stringent requirements of modern high‑end manufacturing.

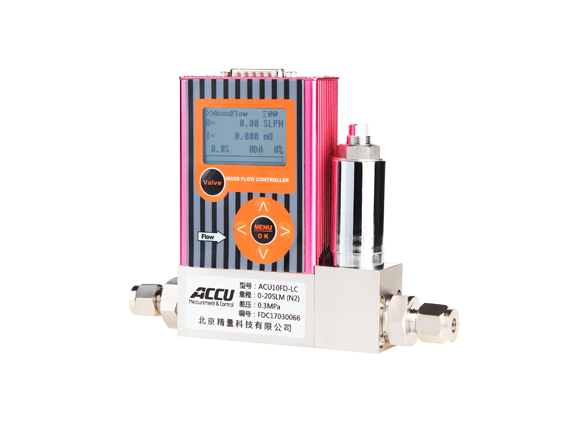

The ACU10FD digital mass flow controller eliminates the ambiguity and drift inherent in traditional analog signals, delivering micron‑level precision and intelligent control of gas flow through fully digitized operation. The device comprises a laminar‑flow splitter, a high‑precision regulating valve, and an amplification‑and‑control circuit, with digital signal input and output. Users issue commands via digital communication interfaces such as RS‑232/485 or Modbus; flow setpoints are transmitted in pure digital form, completely eliminating signal‑transmission errors. Real‑time flow data is fed to a high‑performance microprocessor, which employs a PID algorithm to precisely drive the regulating valve, ensuring control accuracy of ±1.0% of full scale across the entire measurement range and repeatability better than ±0.2% of full scale.
The ACU10FD measures gas mass flow using the capillary‑based heat‑transfer differential calorimetry principle, delivering response times on the order of milliseconds and remaining unaffected by temperature and pressure fluctuations. The device boasts short warm‑up times, minimal zero‑point drift, and high reliability.
In semiconductor chip manufacturing, it precisely controls the flow rates of reactive gases in processes such as chemical vapor deposition (CVD) and etching, directly determining film uniformity and the electrical performance of the chips. In bioprocessing and cell culture, it accurately regulates the supply of gases like oxygen and carbon dioxide, serving as a critical factor in ensuring biological activity and product quality.
