ACU10FDR

The ACU10FDR low-pressure-drop gas mass flow controller is equipped with a proprietary high-flow electromagnetic valve, making it ideal for controlling mass flow even when system pressure is nearly unavailable. Its minimal pressure differential ensures the least possible impact on the system, enabling precise flow control under near-atmospheric conditions while significantly reducing system response time. We can customize the valve and PID control features based on your specific application parameters, guaranteeing fast, stable performance with minimized pressure loss.

Category:

Gas Flow Meters and Flow Controllers

Product attachment:

ACU10FDR Series Low Differential Pressure Gas Mass Flow Controller.pdf

Get a quote

I. Product Overview

The ACU10FDR Low-Pressure-Drop Gas Mass Flow Controller features a proprietary, high-flow electromagnetic valve, designed specifically for controlling mass flow rates even in situations where system pressure is nearly unavailable. Its low-pressure differential ensures minimal impact on the system, enabling precise flow control under near-atmospheric conditions while significantly reducing system response time. We’ll customize the valve and PID control functionality based on your specific application parameters, ensuring the product delivers fast, stable performance with optimized, low-pressure loss characteristics.

II. Product Applications

The ACU10FDR series of low-pressure differential gas mass flow controllers is widely used across various industries, including process manufacturing, food analysis, and analytical testing and measurement applications. Featuring multi-variable measurements and a highly adjustable 50:1 range, a single ACU10FDR controller can effectively replace the functionality of multiple devices. With an accuracy of 1%, repeatability of 1%, and a control response time of less than 200 milliseconds, these controllers ensure reliable operation of process gases.

3. Product Specifications

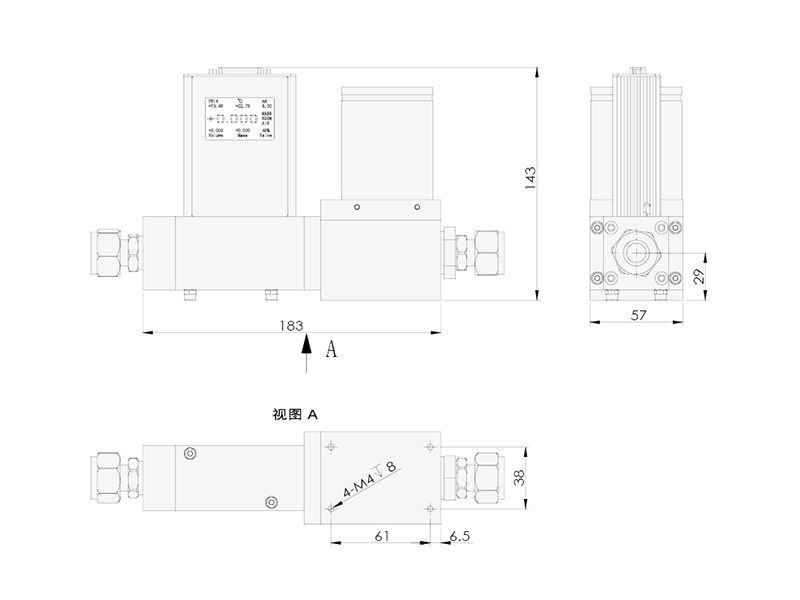

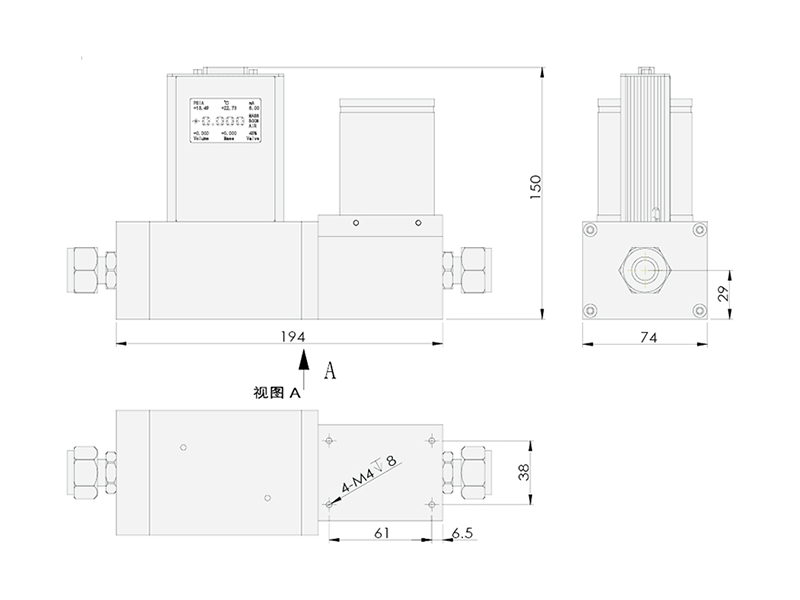

Series	ACU10FDR
Model	LC	LM	MC	MM
Measurement range	0 (150, 200, 300...600) SLM		0 - (600, 700...1200) SLM
Accuracy	±1.0% of F.S.
Zero-point drift & Full-scale drift	0.02% F.S./°C/Atm
Linear	±0.5% of F.S.
Repeatability precision	±0.2% of Full Scale
Measurement range ratio	50:1	100:1	50:1	100:1
Response time	<0.8s
Preheating time	< 5 seconds
Analog quantity	0–5V, 4–20mA
Digital quantity	RS232/485, MODBUS Protocol
Power supply	24VDC
Operating temperature	+10 to +50°C
Maximum withstand voltage	3 MPa / 10 MPa (specified upon order)
Electrical connection	DB15 port
Monochrome LCD display	Display traffic and settings simultaneously
Leak rate	1 × 10⁻⁹ Pa·m³/s
Protection Level	IP40
Valve	Valve remains closed	/	Valve remains closed	/
Base material	Stainless steel
Sealing material	Fluororubber, nitrile rubber, EPDM, perfluoroether
Surface Thread	G3/4 internal thread
Connector	Crimpers, towers, quick-connect fittings, VCRs, flanges, and more
