可控液体蒸发、汽液混合控制蒸发装置

2025-08-13

Word Size

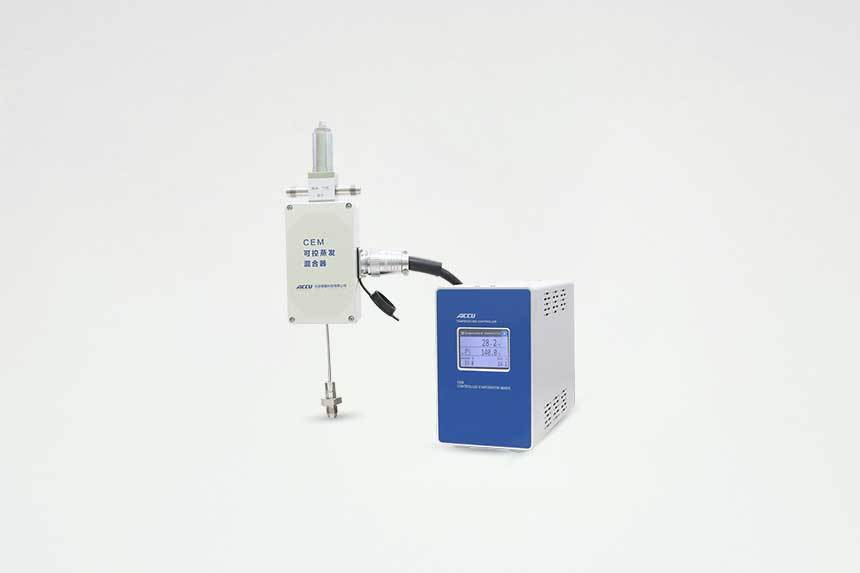

在很多生产工艺中，需要把两种或多种组分一起混合时，一般采用传统的发泡系统实现液体在载气里蒸发。这种方法，对于低蒸汽压下液体的处理量不够，而且无法根据蒸汽压力实时混合蒸发。 ACCU  气液混合蒸发系统，克服了这些问题，实现了快速、准确、高效的蒸发控制。



ACCU 气液混合蒸发系统，由五个部分组成：

一个液体流量控制器（用于控制液体源流量），一个或多个气体质量流量控制器（用于控制载气流量），一个温度可调的混合蒸发器（用于液体汽化）；

一个可选的流量温度显示控制仪（用于设定流量和温度），一个可选的汽化后稀释气体流量控制器（用于产出蒸汽的稀释）。

       ◆典型的  CEM  系统，三路显示控制仪连接并独立控制液体流量、气体流量、蒸发温度。利用  PLC  和  DCS  系统代替显示控制仪，通过  MODBUS  或  DEVICENET  等协议实现集中控制。

     ◆   根据现场需求，可以增加一台或者多台载气流量控制器，实现多组份载气注入。

     ◆   蒸汽出口，可以增加三通，接入一台气体质量流量控制器，对产出蒸汽进行稀释。



温度可控混合蒸发器

产品型号

ACU20CEM

最大汽化量

120g/h

压力等级

10MPA

最高温度

180℃

接头

VCR、卡套








流量 / 温度显示控制仪

产品型号

ACU20CEM

供电

220V

模拟量

0-5V或 4-20mA

数字量

MODBUS(RS232/485)、 PROFIBUS 、 DEVICENRT 协议

显示类型

LCD液晶带触摸
