Do you already know the four major advantages of a sealed container pressure controller?
2025-10-30
Word Size

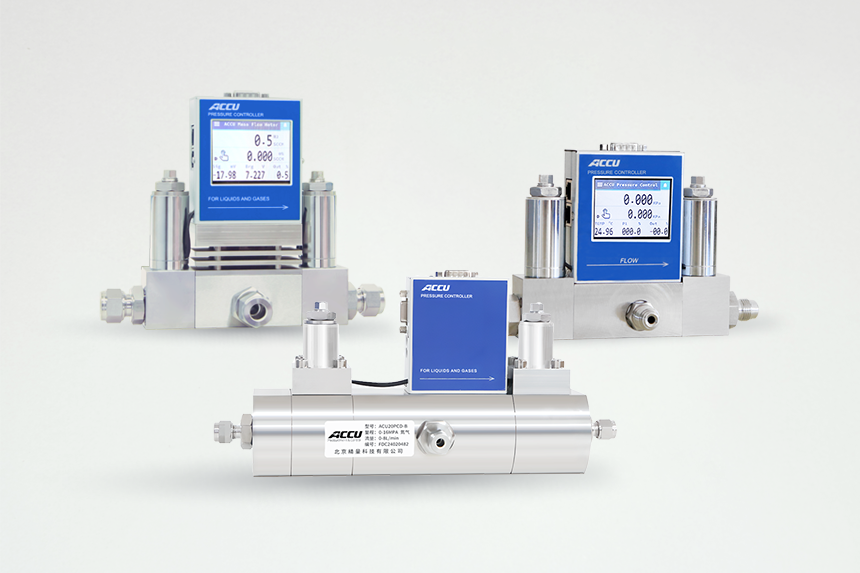

The sealed container pressure controller uses two custom high-speed proportional control valves to rapidly and precisely regulate either absolute or gauge pressure within the closed system. Typically, maintaining a constant pressure inside a sealed container requires the additional installation of an exhaust valve. However, this controller features a unique dual-valve design: one valve maintains the set pressure, while the other serves as a safety relief valve, eliminating the need for an extra exhaust valve and significantly reducing waste of expensive gases. Additionally, the sealed container pressure controller can effectively manage and maintain the pressure differential within the container.
Advantages of using a sealed container pressure controller:
1. Repeatability:
Typically, process equipment with a modular design requires instruments that are highly repeatable. This product boasts remarkable repeatability: ≤0.1%.
2. Response Speed:
Through improved PID loop control, the closed-container pressure controller can quickly and accurately reach a setpoint. Since the PCD utilizes control calculations similar to those of the PC single-valve series, its response time is measured at less than 0.1 second.
3. Reduce Costs:
The sealed container pressure controller allows only one valve to remain open at a time, automatically switching the PID loop control to the corresponding valve. By simultaneously opening and closing a single valve, it significantly reduces gas emissions required to maintain a set pressure—effectively minimizing gas waste. Switching to this pressure controller can help users who purchase bottled gases save thousands of dollars in costs each year.
4. Control Precision:
This product employs an advanced PID control loop and two proportional control valves, enabling standard control accuracy as low as ≤±0.5% F.S., with higher-precision options available upon request. The enhanced PID loop and proportional control mode not only improve the precision of pressure regulation in sealed or nearly sealed systems but also eliminate the blind spots inherent in pressure controllers that rely on pressure switches or on/off valves.
Currently, closed-container pressure controllers are widely used across various industry sectors, including leak testing, fuel cells, fluid dispensing, and process control. Featuring a 1:100 adjustable range, they deliver precision as high as ≤±0.5% F.S., with repeatability better than ≤0.1%, and a control response time of less than 100 milliseconds—features that significantly optimize the pressure control process.
Technical features:
1. The sealed container pressure controller is suitable for various industrial applications and can ideally replace similar foreign products.
2. Stable performance, simple structure, and no detachable components;
3. Multiple pressure and electrical interfaces available for selection.
