ACU10FD-XS

The ACU10FD-XS flow display instrument provides operating power, flow setting (manual control), and flow display for analog and digital mass flow meters. It can be used directly with our company's ACU10FA series and ACU10FD mass flow controllers (MFCs), and is also compatible with other mass flow meters. It is easy to use and offers both embedded and desktop installation options, with a refined and aesthetically pleasing design.

Category:

Display and Control System

Product attachment:

ACU10FD-XS Flow Display Controller.pdf

Get a quote

I. Product Overview

◆Provides operating power for mass flow controllers or flow meters

◆Manual operation control for flow setting

◆Gas flow display

◆Can be used with other models of mass flow controllers

◆Wide voltage range, strong anti-interference ability, CE certified

The ACU10FD-XS flow display is used to provide operating power, flow setting (manual operation control), and flow display for analog/digital mass flow meters.

The ACU10FD-XS flow display can be directly used with our company's ACU10FA and ACU10FD series mass flow controllers (MFCs), and can also be used with other models of mass flow controllers. It is easy to use, with optional embedded/desktop installation, and is exquisite and beautiful.

II. Technical Parameters

Output Voltage (MFC Use)		+15V±3%, -15V±3%
Power Supply		24VDC
Input/Output Signal		DC 0～5V, 4～20mA
Display Unit		SCCM (standard milliliters/minute); SLM (standard liters/minute)
External Control		Cleaning/Shutdown

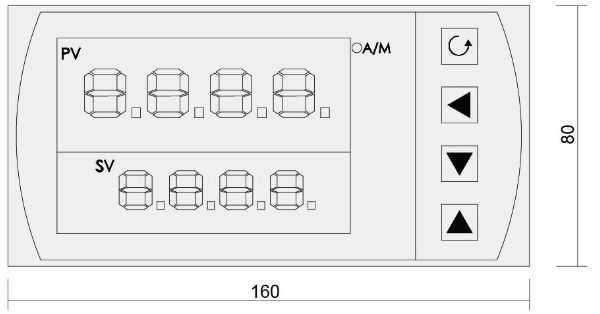

Dimensions		160×80×110mm
Aperture Size		152×76 mm
Reference Source		+5.00V 5mA
Maximum Power Consumption		15w
