Product Description
- Product Description
-
I. Product Introduction
The multi-group gas distribution system mainly consists of an ACCU thermal mass flow controller and a touchable LCD screen. It is mainly used for multi-channel gas flow measurement and control through remote monitoring by computer, and can be controlled by the flow curve function preset by the computer.
Product Advantages:
◆ High-quality materials
◆ Compact size, high integration
◆ Precise and fast flow adjustment
◆ Multi-channel gas, independent adjustment
◆ Encrypted recording of flow data, safe and reliable
◆ Multi-level user permission allocation

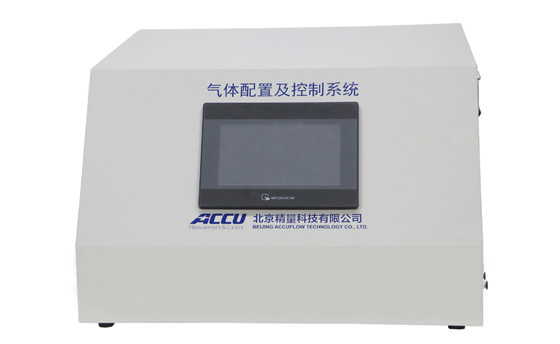

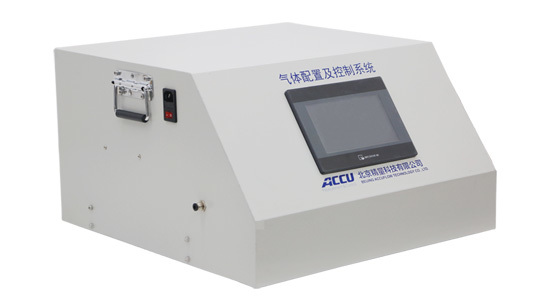

II. Product Display
Dimensions (530mm*550mm*320mm)
Note: Due to different operating conditions, the dimensions may vary. Please refer to the actual product.III. Main Function Introduction

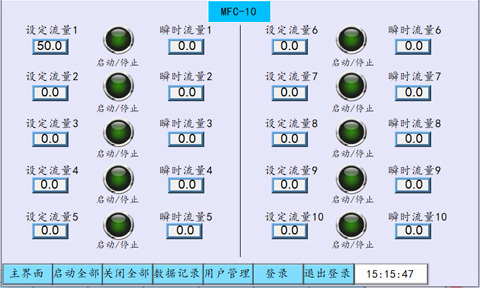

1) Ten-channel flow monitoring and control, can quickly start/stop all flows

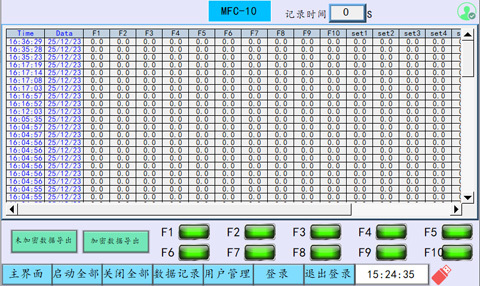

2) MFC communication status detection, measurement data (can be encrypted) recording and export, adjustable recording time interval

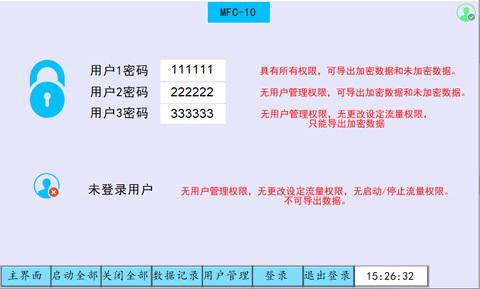

3) Multi-user hierarchical permission management, custom user password
Keyword:
Semiconductor and Microelectronics Manufacturing
